Good for R/D and product promotion. Easy to operate. Provides reliable ion data. Measures ions floating in a ROOM and those emitted by a NATURAL ORE, an ION GENERATOR or an ION HAIR DRYER e.t.c
This product conforms to the JIS standard. Highly accurate, reliable ion data is good for R/D and product promotion.
It is suitable for various applications as it can measure a wide range of ion counts of 10–2,999,000 (pcs/cc). You can measure ions floating in a room or those emitted by a natural ore, an ion generator or an ion hair dryer.
Developed by ANDES ELECTRIC CO., LTD., recognized as the leading manufacturer of ion counters.
You can measure ion counts quickly as no complicated setting is required and it is easy to operate.
You can start measuring immediately after the 10-second warm-up. No patience required!
The large LCD clearly shows the ion count. The figure will help promote your product!
The compact, lightweight body is great for outdoor use as it works on batteries.
Outline specifications
Accuracy
High
Measurement range
10–2,999,000 (pcs/cc)
Detectable ion
Positive / Negative small air ions
Measurement method
Double coaxial cylinder type ion detector; ion-count conversion formula conforming to the JIS standard
Runs on
Alkaline dry battery or AC
Weight
approx. 1300 g
PC connectable
No
Applications
Room, Tourmaline sheet, Natural ores / Ceramics, Ion generator, Ion dryer, etc.
Reason(s) why I purchased from you: A precision measuring device such as this one requires calibration work in the future. I thought you would offer great after sales support. Detailed review: I was searching for a product to measure negative ions emitted by negative ion generators. I have already measured ions emitted by 7 generators. The figures provide a clear understanding on how negative ions are emitted. I made a great purchase. I am happy because the figures really help to promote our products as you cannot see negative ions with the naked eye. I hope you will continue to supply ion counters.
I am happy because: I am so happy because I have found that a negative ion generator does not emit ions. Other comments: I measured negative ions emitted by house plants. I thought they emitted negative ions but this counter showed "0". I am wondering if it cannot detect ions emitted from plants because the ion count is so low?? What kind of plants emit negative ions?
I had been a captain of a boat for big game fishing for many years. I stayed on the sea for 3-5 days to catch greater amberjack, longtooth grouper and giant trevally once I left the port. I caught these fish weighing 30-60kg every day. I sometimes caught bluefin tuna weighing over 200kg. It was quite hard work. 25 years of the hard work caused rheumatism, gout and back pain. I got retired to concentrate on the treatment. I went to hospital and a radon hotspring for medical purposes. I used ion/radon generators and drank about 1.5-2.0L of radon hotspring water every day. I believed the human body had natural healing power. I did these treatments for 3 years. I have recovered completely without having any side effects. I use this counter to measure negative ions before I absorb them when I use an ion or a radon generator. I think the generators work as they emit a lot of negative ions. I am sure you will recover if you are willing to do whatever needed. I carry it around when I go to a radon hotspring. Initially, I thought it was expensive but eventually it is not. Thank you for this affordable product.
Reason(s) why I purchased from you: I decided because of the after-sales service. Detailed review: I used another company's air ion counter before, but it often broke down, so I replaced it. It is well made, easy to operate, and can be calibrated, so it is much more reliable. It is also very convenient that I can switch between positive and negative. Other companies' products display only absolute values, so they showed only the larger of the two numbers. I would like to tell you one point for improvement: the battery drains quickly. For long measurements outdoors or where no power is available, I have to bring spare batteries. Otherwise, I have to hurry to find batteries when it runs out.A rechargeable model may also be a good idea. The other company's product never ran out of battery midway. I use several other kinds of counters, and the models that use a lot of current are rechargeable. I feel that dry batteries are not reliable enough. From Ion Trading: Thank you for your review. We appreciate your suggestion of a rechargeable model, and we will pass it on to the manufacturer.
Reason(s) why I purchased from you: A warranty and a soft case come with the product. Detailed review: It measures ions which I cannot see with the naked eye. It shows the performance of an ion generator. You offered prompt shipment. I will purchase from you again if I need something. Thank you.
I called you before the purchase as I had a question. You kindly answered the question. Thank you. I use this device to measure ions generated by our product. I decided to go ahead as this model conforms to the JIS standard.
See all 42 Customer ReviewsRating: 4.6[Please note]
These are individual impressions and do not guarantee the efficacy or performance of the product; results vary from person to person. If you require medical treatment, please consult a physician. Reviews of other products in the same series are also included. Reviewers may receive a small gift (a silicone bracelet) for posting a review; reviews are not selected or filtered based on their content, and only expressions that violate applicable laws or regulations may be edited, with the reviewer's understanding. Customer Reviews originally written in Japanese are translated into English by Ion Trading.
Customer Reviews
Highly Accurate Air Ion Counter Tester inti-PRO NT-C101A
Loading...
Good for R/D & Product Promotion
✔ Conforming to the JIS standard — highly accurate, reliable data
The inti-PRO NT-C101A conforms to the JIS standard (JIS B 9929)*1 *2. It provides highly accurate and reliable ion data. It is good for R/D and product promotion.
Very few ion counters conform to the JIS standard. We recommend this model for long-term future use.
*1 JIS B 9929: Standard for measuring methods of airborne ion density. What is JIS? *2 Product structure and ion-count conversion formula only — measurement method not applicable.
✔ Large LCD — good for product promotion
The large LCD clearly shows the figures. It will help convince your customer!
✔ Compact & lightweight for outdoor use
This compact, lightweight (approx. 1.3 kg) device is great for outdoor use. It works on 3× AA alkaline batteries or 100–240VAC via the AC adapter, and comes with a specially designed shoulder strap.
Suitable for Various Applications
This highly accurate ion counter measures a wide range of ion counts of 10–2,999,000 (pcs/cc) — from low concentrations of approx. 10–500 (pcs/cc) in a room to high concentrations of over 1,000,000 (pcs/cc) emitted by an ion generator or an ion hair dryer. It will meet all your ion measurement requirements.
Highly Accurate / Reliable Measurement
✔ The double coaxial cylinder type ion detector
The double coaxial cylinder type ion detector maintains an ideal laminar flow*3 *4. This detector ensures the NT-C101A provides highly accurate, reliable air ion measurement.
*3 The parallel flat plate type detector, used in many lower-priced ion counters, can give unstable measurement as it disrupts the flow of the intake air in the detector. *4 Laminar flow: nonturbulent motion of a fluid in which parallel layers have different velocities relative to each other. (Collins English Dictionary)
Comparison of the detectors
Generally there are two kinds of detectors. This high-end ion counter uses a double coaxial cylinder type detector; lower-priced models usually use a parallel flat plate detector.
A · used in the NT-C101A
Double coaxial cylinder type
Provides highly accurate measurement because the air flow is relatively stable in the detector. Good for low-concentration measurement (e.g. 10–500 pcs/cc) as well as high concentration. All JIS-compliant ion counters use this type.
B · lower-priced models
Parallel flat plate type
Does not provide highly accurate measurement because the air flow is not stable in the detector. Not good, particularly for low-concentration measurement.
Developed by ANDES ELECTRIC CO., LTD. — Leading Manufacturer of Ion Counters
2002–ion counter production
11,000+inti-PRO units sold
2003–JIS committee member
The NT-C101A was developed by ANDES ELECTRIC CO., LTD., a long-established company recognized as the leading manufacturer of ion counters in Japan.
ANDES has served on the JIS drafting committee for air ion measurement methods since 2003, and possesses advanced technologies and extensive know-how in air ion measurement.
They are also well known globally, holding the #3 market share in the world’s small/medium-sized LCD colour-filter market.
How to Use
No complicated setting is required. It is easy to operate, so you can measure ion counts quickly.
1
Open the dust-proof cover
Open the dust-proof cover to completely open the air suction opening.
2
Turn on
Turn on the counter. It automatically starts the 10-second warm-up (only after power ON).
3
Start measurement
Place a sample close to the air suction opening. The image below shows a 3,660 (pcs/cc) negative ion count with radium ceramic balls.
Measurement range: The digit grouping symbol appears automatically depending on the ion count. For details, please see the instruction manual.
Positive ↔ Negative: You can switch between positive and negative ion measurement mode at any time.
Zero adjustment: Zero adjustment (approx. 30 seconds) is not part of the steps above. You do not need it before measurement if humidity has not changed greatly since the last measurement.
Demonstration Videos & Photos of Actual Measurements
Demonstration videos

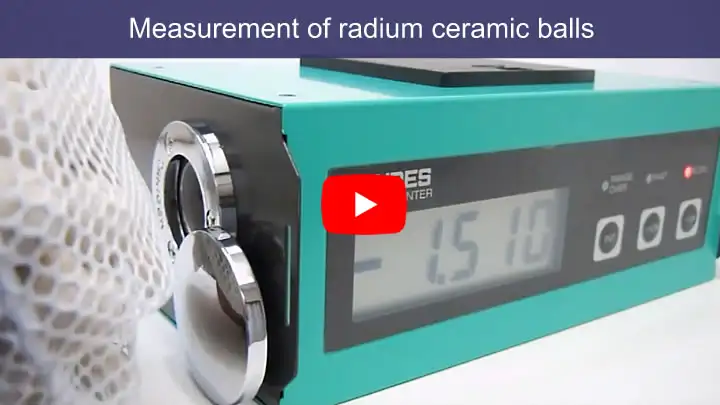

Measurement of radium ceramic balls0:56 / No sound, with subtitles
Measurement of a mobile negative ion generator1:30 / No sound, with subtitles
Photos of actual measurements
Apatite stonesMobile negative ion generatorHigh-density negative ion generatorIon supporter
* The readings shown on the LCD display are not exact measurement results.
Package Contents
Air ion counter
Radium sheet for test operation
Specially designed 100–240VAC compatible AC adaptor
Shoulder strap
3× AA alkaline batteries for test operation
Instruction manual
Aluminum carrying case *
Warranty card
* The aluminum carrying case may differ from the image.
Part Names & View of the NT-C101A
Part names
Front side panelLeft side panelRight side panelTop side panel
View of the NT-C101A
Q & A
Ion counter
1. How long do I have to wait before I turn on the counter?
You do not need to wait.
2. Do I have to perform zero adjustment before every measurement?
We suggest you should do so if you need more accurate measurement, or if ambient conditions such as humidity have changed significantly.
3. Do I need to adjust or calibrate the detector?
No, you do not need to.
4. Does the detector detect foreign bodies?
No, it does not. If it is working improperly, it is possible that it has sucked in something or has become dirty. Please contact us if this happens.
5. What is the ideal distance between the detector and the sample?
There is no single ideal distance. However, the ion count detected by the counter can be lower than it actually is when the sample is too far away. About 10 mm ± is fine. Be sure that the sample never makes contact with the detector.
6. Where should I place a sample?
Basically, place the sample in front of the detector. When you measure ions produced by e.g. a hair dryer, make sure the air from the dryer and the air from the fan of the counter cross each other perpendicularly. Otherwise, the air from the dryer can affect the air flow in the detector.
7. Can I measure positive ions?
Yes. You can switch to the positive ↔ negative ion measurement mode. Please note that you cannot measure both ions simultaneously.
8. When should I switch “FAST” ↔ “LOW” on the INT switch?
You can change the measurement interval. For example, select “LOW” to make the interval longer when the ion count fluctuates too fast, so you can read the figure more easily.
FYI — Measurement interval: FAST 0.25s / LOW 1.0s
9. Can I store the ion data in the counter?
No, you cannot.
10. Can I connect this counter to my PC?
No. This affordable model does not have an external interface. You can connect the high-end model to your PC to save data and view the wave form.
11. Can I measure ion densities in water?
No, this ion counter is for air ions.
12. What is the lowest ion density this counter can measure?
It is 10 (pcs/cc).
13. What is the mobility of this counter?
It is 0.6 (cm2/Vs). We believe this model can detect the small ions that exist in living spaces.
14. Can I connect this counter to the ground?
Yes. This model has a ground terminal. A ground wire is not included in the package.
15. Do I have to connect this counter to the ground? If so, why?
We suggest you should do so, particularly when you measure a large amount of ions produced electronically by e.g. an ion generator. The counter may give inaccurate readings because it becomes electronically charged through electrostatic induction caused by the large amount of ions.
It is ideal to use a thick, low-resistance wire and to make sure it is buried in the ground.
16. A measurement tolerance is not provided in the specs. Why?
Because there is no official standard regarding air ion measurement tolerances. We actually measured the voltage applied to the detector and the flow rate of the fan to calculate the ion count, and compared the calculated figure with the measured ion count to make sure the tolerance was within our own standard.
17. Can I use this ion counter in my country? The voltage and AC plug are different from Japan.
You can use the NT-C101A in most countries, as it works with AC 100–240V and comes with AC plug adaptors for various countries.
18. Can I mount this counter on a tripod? Is a tripod included in the package?
Yes. This model has a threaded screw hole. However, a tripod is not included.
19. Do you have a user’s manual written in other languages?
We only have English and Japanese versions.
Maintenance work
1. How much / how long will calibration work cost / take?
It will cost about US$213 depending on the exchange rate, and takes 2–4 weeks. We will contact you with a quote if your counter needs calibration.
2. Can I clean the detector myself? If so, how can I do that?
100–240VAC ±10% 50/60Hz (when the specially designed AC adapter is used)
Power consumption
approx. 1.5W (when the AC adapter is used)
AC adapter
Input 100–240VAC ±10% 50Hz/60Hz, Output 5VDC 2A
Battery
3× AA Alkaline or NiMH battery (NiMH battery not included in the package)
Approx. battery run time
Alkaline: 2 hours, NiMH (2000mA/h): 5 hours
Display
LCD, TNT (differential) reflection, 70×24mm, 4+1/2 digits, One column display, No backlight
Measurement range
10–2,999,000 (pcs/cc)
Minimum detectable ion density
10 (pcs/cc)
Measurement interval
0.25s or 1.0s (selectable)
Warming up
10s after turned on, 10s before measurement
Operating environment
· No wind, 0–50°C (32–122°F) 85% R.H. or below (no condensation) when driven by batteries · No wind, 0–40°C (32–104°F) 85% R.H. or below (no condensation) when plugged into the AC adapter
Storage environment
-10–50°C (14–122°F) Absolute humidity 18g/m3 or below (no condensation)
