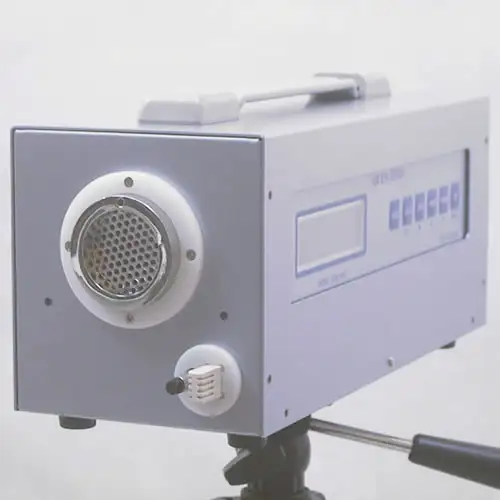

Highly Accurate Air Ion Counter COM-3600F [Discontinued]

Measures negative/postive ions with high accuracy. You can connect it to your PC.

Product Number: COM-3600F

List Price: US$15763.07

Price: US$10000.68 & FREE Shipping (not included customs tax)

Payment methods: Credit/Debit card, PayPal

Product summary

The precisely designed and adjusted Japanese Gerdien capacitor detector provides highly accurate ion measurement.
It measures positive or negative ions in the Manual mode.
It measures negative and positive ions alternately in the Auto mode.
It is affordable yet provides highly accurate ion measurement.
It conforms to the "JIS B 9929 Standard for measuring methods of airborne ion density" which rigorously defines the methodology to measure ion density.
The ion count, temperature and humidity are displayed on the LCD.
It measures a wide range of ion counts from 0-5,000,000 (pcs/cc) with high accuracy, which is a wider range than other ion counters.
The specially designed software, which comes with the counter, enables you to remotely control it. You can save and print out files, which contain ion count/waveform data, from your PC. This software is compatible with Windows 95 - 10 English/Korean/Chinese/Japanese versions.
Made in Japan.

*This ion counter comes with the special designed software.

Usable worldwide!

You can use this ion counter in most countries as it works with AC100-240V and comes with the AC plug adaptors for the countries.

Features

1. Ion counter

Highly accurate ion measurement

A detector with high accuracy is required for air ion measurement as it handles the faint electricity.

The state of the art detector, which employs the Japanese Gerdien capacitor, is precisely designed, manufactured and adjusted with years of experience in order to provide highly accurate ion measurement.

Conforms to the JIS standard
It conforms to the "JIS B 9929 Standard for measuring methods of airborne ion density" which rigorously defines the methodology to measure ion density.

Manual/Auto mode ion measurement
The ion count, temperature and humidity are displayed on the LCD. The counter works in 2 modes.

Manual mode: It measures positive or negative ions. You can manually switch to positive <-> negative.
Auto mode: It measures negative and positive ions alternately for the specified time frame.

Wide range measurement with high accuracy
It measures a wide range of ion counts from 0-5,000,000 (pcs/cc).

Wide range of input voltage
It runs on single phase 100-240VAC.

Easy to carry around

You can carry around the compact and lightweight body which weights only 2.5kg.

Specially designed software
Using the specially designed software, which comes with the counter, you can remotely control it via RS-232C, USB or LAN.

Switch to turn off the air suction fan
You can turn off the air suction fan to save power and prevent an unnecessary load to it. Fans built into air suction type air ion counters generally consume a lot of power.

Data output
The ion count data can be printed out on a thermal printer.
(Our recommendation: BL2-58.)

"Low Bat" indication

is displayed when the built-in battery is running low and needs charging.

2. Software

Can open and print out files which contain ion count/waveform data
The specially designed software installed on your PC enables you to open and print out files which contain the following data. It will help you to make a report. Great for making a report!

·Ion waveforms
·Maximum/Average ion count
·Date/Temperature/Humidity

Remote control
You can remotely control the ion counter from your PC.

Compatible with many languages
The specially designed software is compatible with Windows 95 - 10 English/Korean/Chinese/Japanese versions.

Data collection time
The data collection time per page can be set to 15/30/60 minutes.

Automatic saving/Continuous measurement
Data is automatically saved after every measurement cycle is completed and then the counter starts the next measurement cycle. Thus, you can continue to observe ion data for many hours.

Opening the file
You can open the saved txt file at any time.

File combination
Up to 96 saved files can be combined and saved as one csv file at a time.

Specifications

Product name: Highly Accurate Air Ion Counter COM-3600F
Detectable ion: Positive/Negative small air ions
Measurement method: Ebert Gerdien capacitor method
Measurement tolerance: Please refer to: "Please tell me why a measurement tolerance is not found in the specs."
Detectable mobility: Ranges of small ions | What is a small ion?
Dimensions: W100xH105xD250 (mm) (projections not included)
Weight: Approx. 2.5kg
Internal power supply: Nickel-Metal Hydride battery
External power supply: AC adaptor 100-240VAC (50/60Hz) input, 12VDC output
Battery charging time: approx. 4 hours
Operation hours: approx. 6 hours when fully charged
How to charge the battery: Turn off the ion counter and connect the AC adaptor. The charge indication LED turns on while charging and it turns off when the charging is completed.
Consumption power: Approx. 3.8W
Measurement range of the built-in thermometer: 0-50C (32-122F) +/- 1%
Measurement range of the built-in hygrometer: 5-95% +/- 5%
Measurement range:
0 - 5,000,000 (pcs/cc).
Range1: R1 = 0 - 8,000 (pcs/cc)
Range2: R2 = 0 - 50,000 (pcs/cc)
Range3: R3 = 0 - 500,000 (pcs/cc)
Range4: R4 = 0 - 5,000,000 (pcs/cc)
Minimum detectable ion density: 1 (pcs/cc)
Data collection: 10 (times/sec)
Collected data display: 3 (times/sec)
Display: 16 x 2 dot-matrix LCD 16 characters LCD & Back light with dimmer function
Operating temperature range: 5-35C (41-95F)
Operating humidity range: 85% R.H. or below (no condensation)
Storage temperature range: Room temperature
Storage humidity range: Room humidity (no condensation)
Accessories:
·100-240VAC compatible AC adaptor
·RS-232C cable
·RS-232C cable (reverse)
·USB serial conversion cable
·Specially designed software
·Specially designed aluminum box
·Tripod
·Instruction manual
·Warranty card
·Radium sheet for test operation
Made in: Japan

Limited Warranty: 1 year from the date of receipt
